電腦振動刀皮革切割機_制鞋機械設備_電腦開料機械_參數

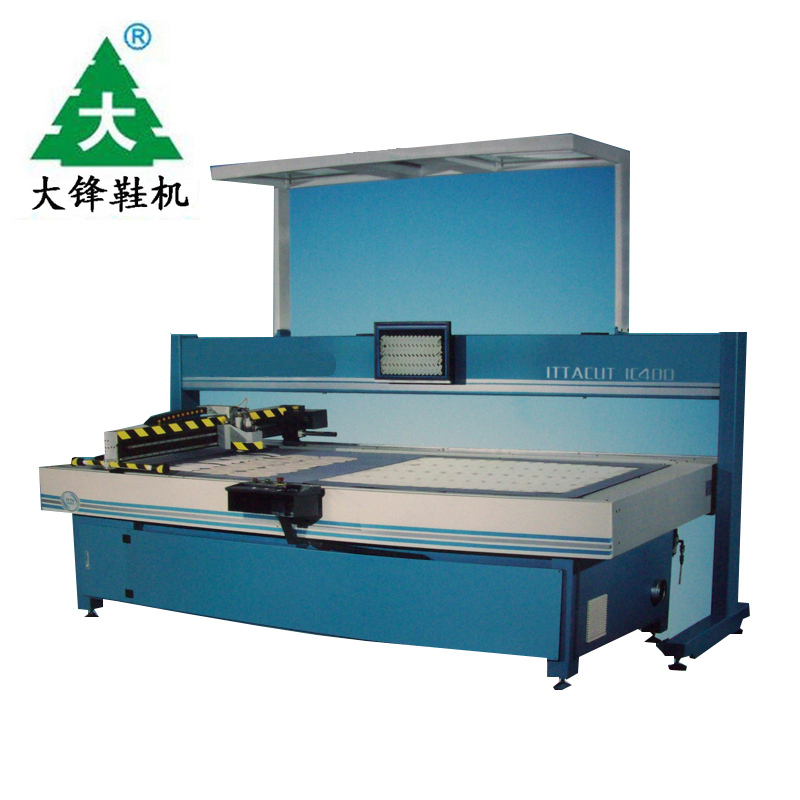

數控震動刀皮革切割機IC400

Computer Leather Cutting Machine With Oscillating Knife



有效切割范圍 Cutting Area 3000×1100mm     既可以節省大量的人力、材料、刀模，不分訂單大小都能生產出準確而優質的產品。 The machine not only can limit the cost from all sides, but also can produce thefinest products.     技術參數 Technical Features   　機器尺寸/machine dimension 　長/lenght 　 4000mm 　寬/width 　 1840mm 　高/height 　 2700mm 　切割范圍/working area 　長/lenght 　 3000mm(in2 sections) 　寬/width 　 1100mm 　速度/speed 　切割速度/max.speed 　 60m/min 　配附刀具氣動振動頻率 　The Pneumatic vibration frequency of 　the equipped knives 　 10000-12000 times/min 　功率/power 　 3-phase200-400VAC 　 50-60HZ 10.5KW 　 Monophase 200-240VAC 　 50-60HZ 2KW 　氣動附壓/pneumatic 　 4/6BAR
